Water Tank Chiller Specifications
| Model No. |
|
DC -18WCH |
DC -24WCH |
DC -36WCH |
| Model (50Hz) |
Capacity |
1.5 TR
|
2.0 TR
|
3.0 TR
|
| Power Supply
|
|
230 V, 1 PH, 50 HZ |
1 phase, 50 Hz |
| Nominal Cooling Capacity
|
BTU/HR
|
19000 |
25200 |
35660 |
|
Kcal/HR
|
4662 |
6350 |
8986 |
| Power Input 50 Hz ( Nominal)
|
Watt |
1930 |
2710 |
3650 |
| Current (50Hz)
|
Amp |
7.8 |
11.7 |
6.3 |
| Refrigerant |
|
R-22 |
R-22
|
| Gas weight
|
|
1000 gms
|
1200 gms
|
1500 gms
|

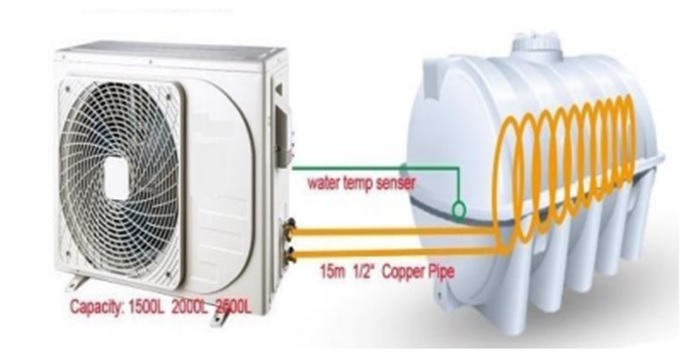

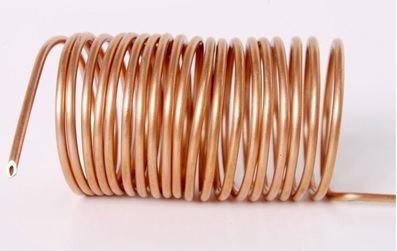

| Cooling (immersion) Coil
|
3/8 |
50ft (15M)
|
50ft (15M)
|
50ft (15M) |
| Width |
MM
|
870 |
870 |
970 |
| Depth |
MM |
380 |
380 |
400 |
| Height |
MM |
605 |
605 |
825 |
| Net Weight
|
kg
|
50 |
50 |
65 |
| Gross Weight
|
Kg |
52 |
52 |
68 |
